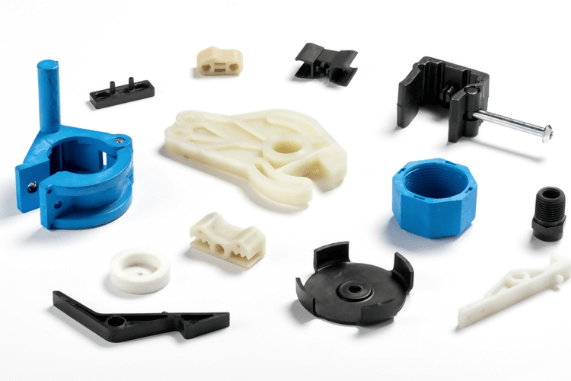

Plastic Parts

Unquestionably, an injection molding technique is essential in developing the best plastic part designs for various products. However, there are multiple factors that you need to consider to ensure excellent production. Also, the lifter designing standard for plastic injection mold should be observed to ensure you have the right quality of the product in question. Now, let’s have a look at the main factors that you need to put into consideration to ensure that you have an excellent product.

  • Ensure the best uniformity

According to the plastic part design guidelines, constant wall thickness across the part provides the best flow. Consequently, it makes the part uniform, thus looking more attractive. However, the recommended minimum wall thickness is 1mm and a maximum of 4mm while undertaking conventional processes of injection molding. Nevertheless, a nominal thickness of the wall should range between 2-3mm.

  • Ensure a perfect thickness transition

Similarly, a uniform thickness transitional is essential, according to the injection mold design basics. The transaction in question should be from the thick part to the thin one. Subsequently, part with such transition becomes better when the plastic flows across features, from the more exceptional wall thickness to the lesser ones.

  • Let datums define your territories

Additionally, the plastic part design course argues that you should use features used as reference positions to determine every location in the establishment of part interactions and interfaces to the entire system. The use of a datum structure that rhymes with the design of the object in which it is assembled can assist in determining the functionality of the product. However, the functioning in question might be pleasant or not.

  • Make good use of interrogations

Besides, proper use of inquiries through means such as plastic part design interview questions is essential. For instance, taking manufacturing design reports more seriously is vital since they contain an understanding of the tool molder’s design. Also, other significant information such as gate locations and ejector pin locations can help you understand the design better.

  • Make it simple

According to the lifter design guide, simplicity makes the final product better. Therefore, areas that can’t get formed through simple shut, open, or undercut should be avoided. Conversely, when simplicity does not work, lifters should be used to make features.

In conclusion,

Generally, the injection molding method has been beneficial in producing excellent plastic part designs to be used in various fields. However, there are numerous things you need to consider in ensuring that the manufactured parts are unique. For instance, simplicity, using features as the reference points, having a perfect transitional thickness, and having an outstanding uniformity is essential in meeting the customer’s demands and expectations. However, making much use of interrogations is also crucial in ensuring you have the necessary understanding, similar to the molder’s design so that the two parts can perfectly rhyme with each other.
